TECHTONGDA 4 Color Screen Printing Kit Silk Screen Printing Press Floor Type 1 Station with Flash Dryer UV Exposure Unit Squeegee Frame

Parameters Package included: 1)1 set of Floor Type 4 color 1 station screen press (006524) +flash dryer (006298) 2)1 set of simple UV exposure unit (006800) 3)1 set of simple drying cabinet (006301) 4)3 pcs of 16"x20"Aluminum frame with 80#Fabric (007264) 5)3 pcs of 13"(33cm) squeegee (007347) 6)2 bottle of White Paste (008243) 7)2 bottle of Transparent base (008253) 8)1 bottle of pallet adhesive (008450) 9)20 sheets A4 Transparency Film (007003) 11)1 pc of 14" Scoop Coater (007001) 12)8 pcs of Spatulas (007024) 13)1 bottle of red Color Pigment (008060) 14)1 bottle of yellow Color Pigment (008061) 15)1 bottle of blue Color Pigment (008062) 16)1 bottle of green Color Pigment (008063) 17)1 bottle of black Color Pigment (008064) 18)1 roll of aluminum foil tape (008433)

• 【4 Color 1 Station Screen Printer+ Materials Kit】This is a 4 Color 1 Station Screen Printer. The printer’s arms of frames can rotate 360°. The kit is popularly used for printing on clothing (especially for T-shirt), metal, paper, plastic, circuit board, wood, glass, ceramic, leather and other plane printing substrates.
• 【With Micro-registration Function】With screws knobs on the arms of the screen printing frame to micro move the frame from side to side or front to back in position matching.
• 【High Stability】On the arm of the pallet, there are locating dent and locating wheels so that the frame can be fixed firmly when printing. When you finish printing, lift the frame and it won’t fall because there is spring to hold it. The tension of the spring can be adjusted according to the weight of different frames.
• 【Main Parameters】The size of the pallet is 22×18×0.7inch. The pallet is fixed to the arms by bracket so that it can move 4inch horizontally. The screen frame clamp is 11inch wide. It is suitable for screen frame within 1.6inch thick and 24inch wide. The frame clamp can be moved vertically by 2inch. The lifting angle of the frame is adjustable after printing.

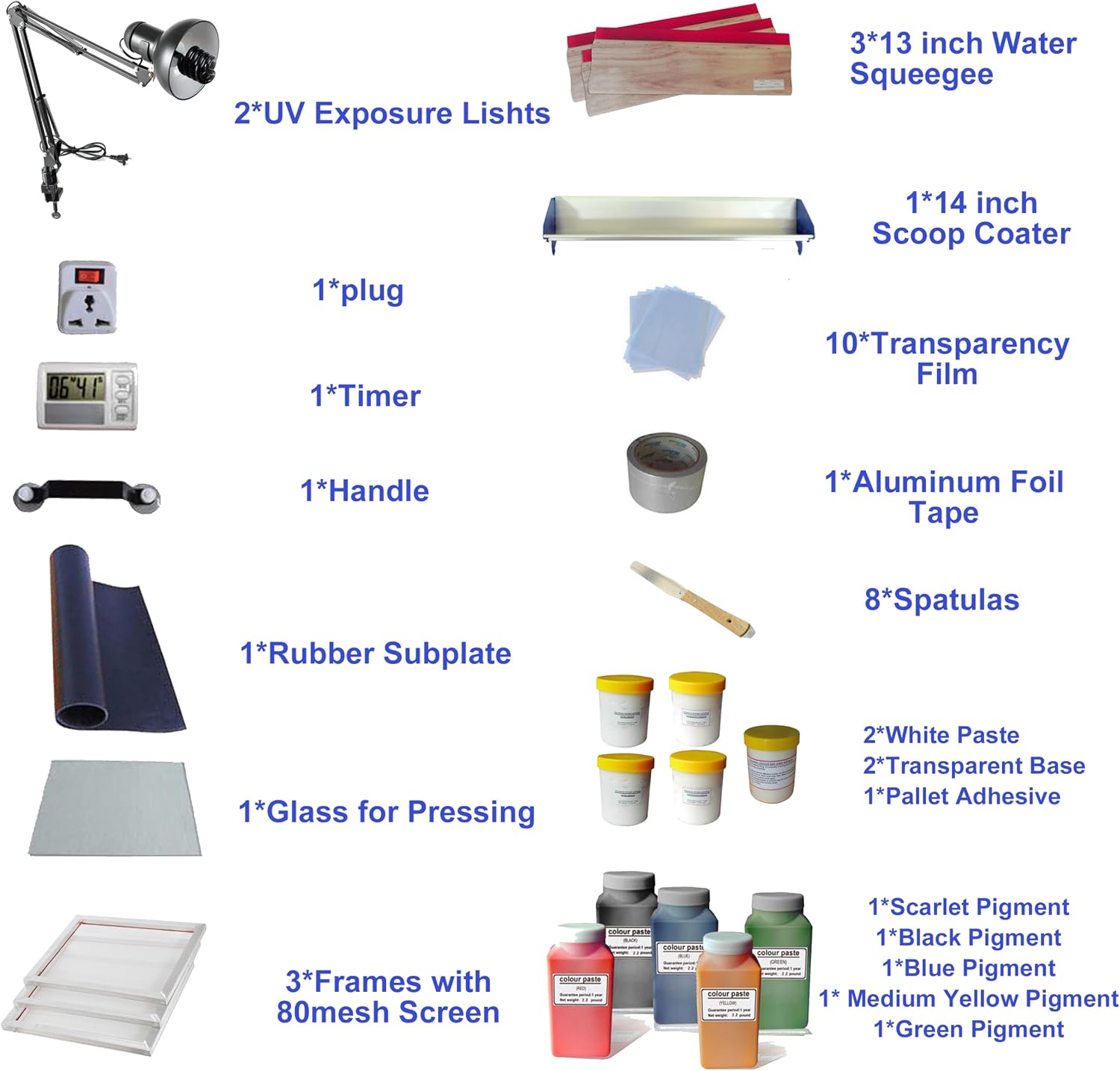

• 【What’s Included】A Flash Dryer, a UV Exposure Unit, a Drying Cabinet are included. The flash dryer can be installed on the printer. The screen printing accessories includes squeegee, emulsion scoop coater, screen frame with mesh, transparent film, spatulas, Ink, transparent base, foil tape, pallet adhesive.
