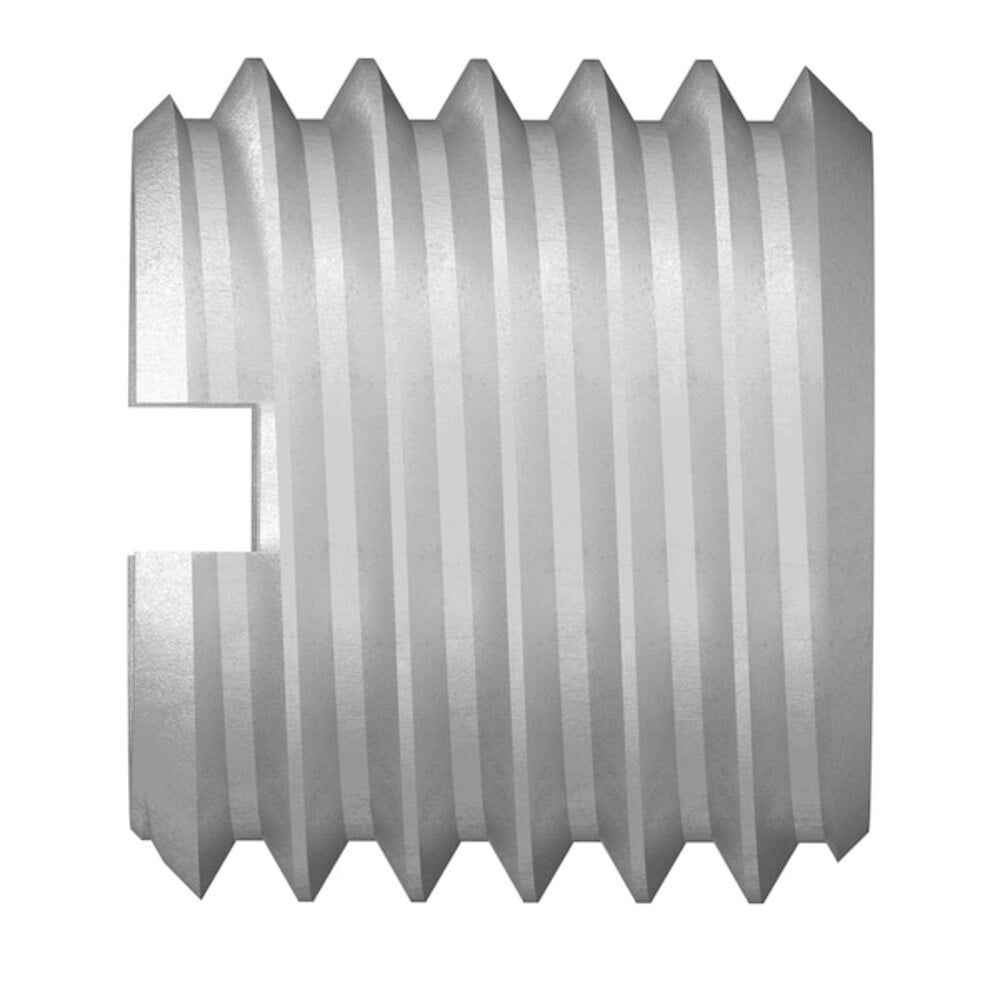

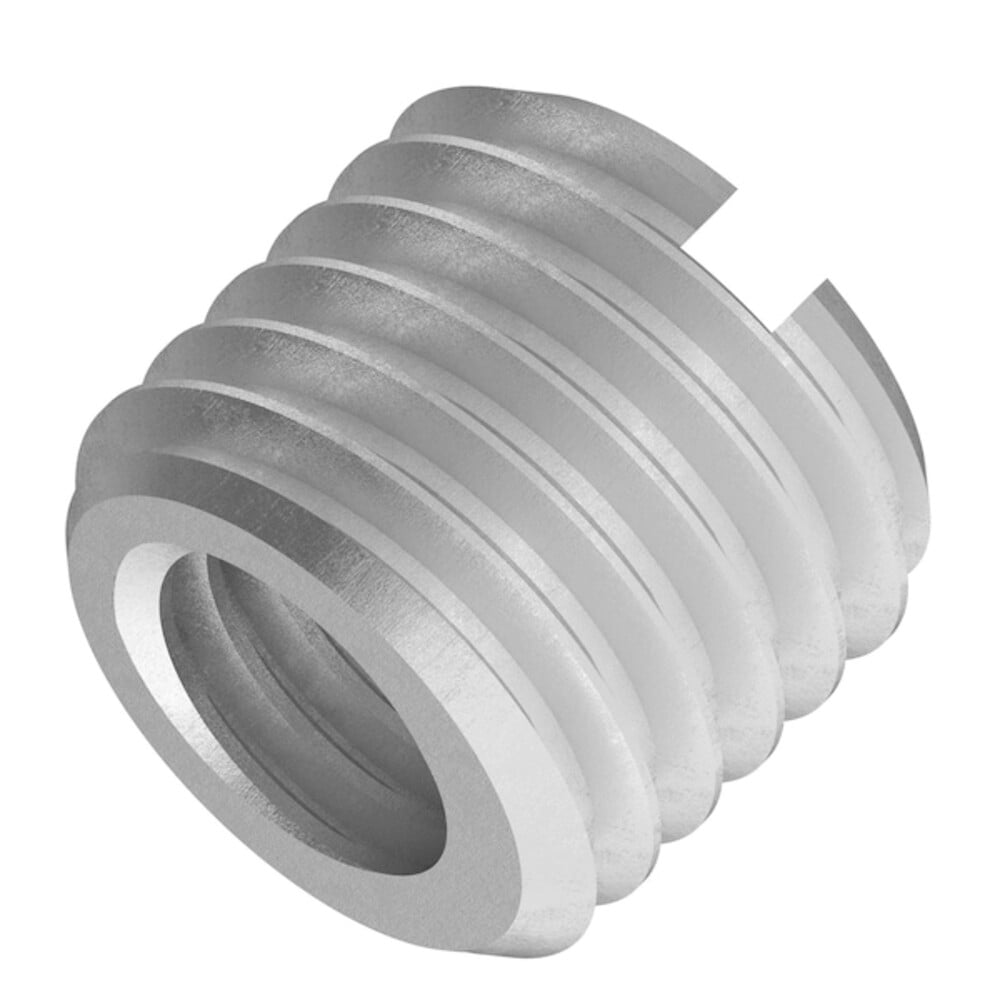

Heavy Wall Self Locking Thread Insert, 1/2"-13 Int Thrd Sz, Steel EZ-329-8IC
Product details
| Management number | 238581190 | Release Date | 2026/07/11 | List Price | US$47.76 | Model Number | 238581190 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

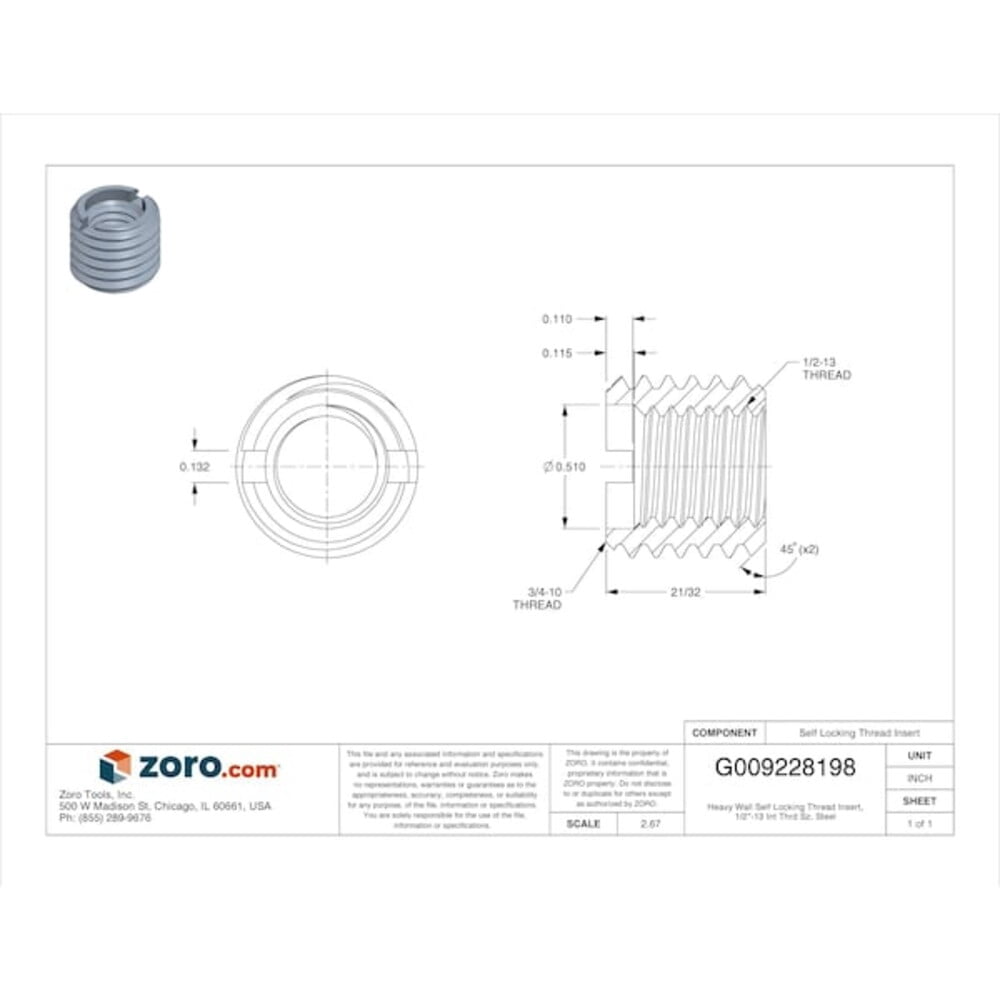

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/4 In.-10, Drill Bit Size 21/32, External Thread Fit 2A, External Thread Size 3/4 In.-10, Finish Black Phosphate, Insert Diameter 3/4 in, Internal Thread Fit 2B, Internal Thread Size 1/2 In.-13, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.656 in, Minimum Installation Depth 3/4 in, Overall Length 21/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
- Brinell Hardness:163
- CAD Available:Yes
- Compatible Material:Metal
- Compatible Tap Size:3/4"-10
- Drill Bit Size:21/32 in
- Drive Type:Slotted
- External Thread Fit:2A
- External Thread Size:3/4"-10
- Features:Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
- Finish:Black Phosphate
- Includes:(10) Threaded Inserts, Drill, Tap and Drive-Tool
- Insert Diameter:3/4 in
- Installation Method:Drive Tool, Screwdriver
- Internal Thread Fit:2B
- Internal Thread Size:1/2"-13
- Item:Self Locking Thread Insert
- Material Grade/Class:12L14
- Material:Steel
- Maximum Hole Diameter:0.656 in
- Minimum Installation Depth:3/4 in
- Overall Length:21/32 in
- System of Measurement:Inch
- Thread Direction:Right Hand
- Thread Type:UNC
- Wall Type:Heavy Wall
| Material | Steel |
|---|---|
| Finish | Black Phosphate |
| Brand | Manufacturer Varies |
| Accessories | (10) Threaded Inserts, Drill, Ta |
| Model | EZ-329-8IC |
| Product net content uom | Each |
| Color | Multi |
